Why Commercial Roof Ventilation Matters for Your Building
Commercial roof ventilation improves airflow by bringing in fresh air at lower points and releasing heat and moisture near the roof peak or through roof-mounted exhaust vents. Balanced intake and exhaust help control attic heat, condensation, mold risk, roof-deck damage, and unnecessary HVAC strain.
For many vented roof assemblies, the starting guideline is 1 square foot of net free vent area for every 150 square feet of attic floor space, divided as evenly as possible between intake and exhaust. Some code-approved conditions allow a 1:300 ratio, but the right design depends on the roof shape, insulation, vapor control layer, local code, and building use.
A properly designed system protects more than the roof. It helps preserve indoor comfort, reduce moisture damage, and support a longer roof service life. Prime Roofing & Restoration’s commercial roofing team helps Central Alabama property owners assess roof airflow alongside storm damage, drainage, flashing, and overall roof condition.
I’m Bill Spencer, Owner and President of Prime Roofing & Restoration, with hands-on experience installing, maintaining, and repairing commercial roofing systems, including flat, TPO, metal, and low-slope roofs. In this guide, I’ll explain how commercial roof ventilation works and what building owners should look for before problems become expensive repairs.
Related content about commercial roof ventilation:
The Critical Importance of Proper Building Airflow
Proper airflow design is one of the most vital components of commercial building management. When commercial facilities lack sufficient air movement underneath the roof assembly, solar radiation rapidly heats the building envelope. During peak summer conditions in Central Alabama, roof surface temperatures easily climb beyond 150 degrees Fahrenheit. Without an effective ventilation pathway, trapped thermal energy bakes roof decking, cooks waterproofing membranes, and drives cooling bills through the ceiling.
In addition to heat buildup, stagnant interior air traps trapped ambient humidity. Commercial activities, human occupancy, industrial machinery, and climate shifts release significant moisture into interior spaces. As warm, humid air ascends toward the cooler underside of the roof deck, it reaches its dew point and forms condensation. Over time, this constant dripping destroys insulation performance, corrodes steel roof decking, and rots wood structural components.
Preventing Thermal Degradation and Moisture Accumulation in Commercial Roof Ventilation
Uncontrolled humidity underneath a commercial roof creates an environment for toxic mold and mildew growth. Mold spores flourish in dark, damp interstitial spaces, penetrating ceiling tiles and compromising indoor air quality throughout offices, retail spaces, and warehouses. Moisture condensation also accelerates asphalt shingle deterioration, causes protective granule shedding, and rots wooden roof decking.
Effective airflow keeps structural decking dry and stabilizes thermal conditions. By balancing intake and exhaust air, property managers dramatically cut commercial cooling costs while extending the operational lifespan of the entire roof deck assembly. To dive deeper into overall structural maintenance strategies, explore our Commercial Roofing Complete Guide.

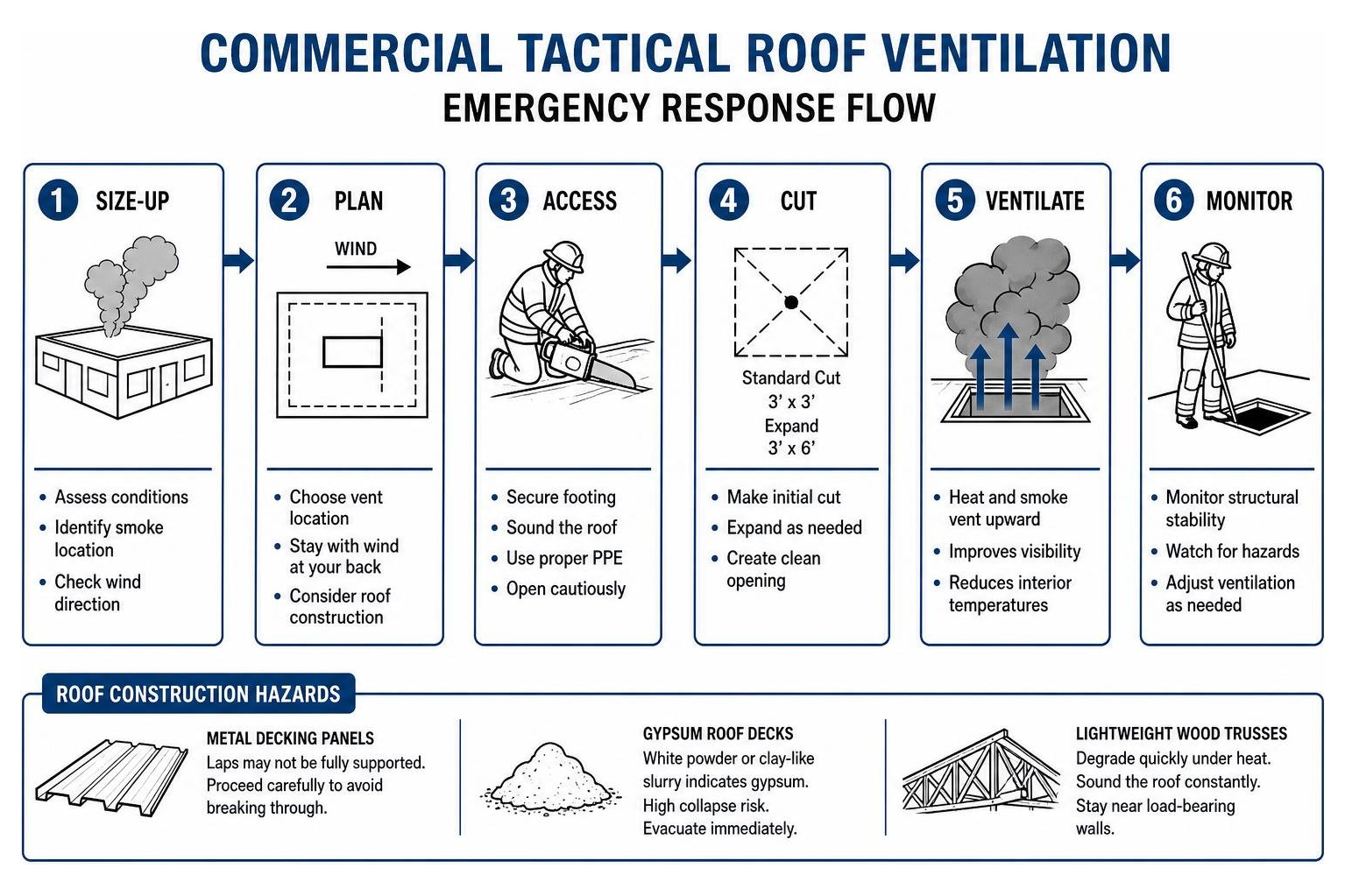

Impact on Firefighting Operations and Emergency Tactical Ventilation
Proper roof airflow design and roof deck layout play a critical role during structural fire response. When a commercial building catches fire, intense smoke, superheated gases, and toxic fumes gather rapidly under the roof structure. Firefighters perform emergency vertical ventilation to cut strategic openings in the roof, allowing heat and smoke to vent directly into the atmosphere. This tactical operation increases firefighter visibility, lowers interior temperatures, and buys precious time for interior search-and-rescue teams.
Firefighters execute precise roof cuts—such as a standard 3-foot by 3-foot expandable coffin cut expanded to 3 feet by 6 feet—to release trapped combustion products safely while operating with the wind at their backs. However, modern commercial construction features structural variations that present unique emergency hazards:
- Metal Decking Panels: Metal pan sheets are common on flat commercial structures. Because metal sheets are not always supported directly at every lap seam, firefighters must exercise caution when advancing saws to prevent stepping on unsupported roof sections.
- Gypsum Roof Decks: Gypsum decks lose structural integrity rapidly when exposed to moisture or high temperatures. If emergency saw cutting unleashes a white powder or clay-like slurry around the blade shroud, it indicates a gypsum deck that is prone to sudden structural collapse, signaling an immediate evacuation order for rooftop crews.
- Lightweight Wood Trusses: Lightweight timber assemblies degrade quickly under severe thermal stress, requiring crews to sound the roof deck constantly with pike poles and maintain position near load-bearing parapet walls.
Emergency tactics rely heavily on understanding structural deck behavior under thermal stress. For a closer look at field tactical operations, view the Miami Dade Fire Rescue tactical roof ventilation guide.
Standard Calculation Rules and Requirements for Building Airflow
Calculating the correct amount of commercial roof ventilation requires assessing Net Free Vent Area (NFVA). NFVA represents the total unobstructed area available for air movement through intake louvers, soffits, ridge vents, or mechanical penetrations. Building standards established under the International Building Code (IBC) define strict vent area ratios based on total attic or sub-roof square footage.
The standard starting rule for commercial buildings mandates 1 square foot of Net Free Vent Area for every 150 square feet of attic space (1:150 ratio). This total ventilation area must be split 50/50 between fresh air intake vents placed low on the roofline and exhaust vents located near the peak.
Under specific circumstances, building codes permit a reduced ventilation standard of 1 square foot of NFVA per 300 square feet of floor space (1:300 ratio). To qualify for the 1:300 exception, the building assembly must meet one of the following conditions:
- Climate Zone Classification: The structure is located within International Energy Conservation Code (IECC) Climate Zones 6, 7, or 8, where temperate, low-to-moderate atmospheric humidity permits reduced airflow rates.
- Vapor Barrier Integration: A continuous Class I or Class II vapor retarder is installed on the warm-in-winter side of the ceiling assembly.
- High-Peak Exhaust Balance: Between 40 percent and 50 percent of the total required vent area is situated in the upper portion of the roof space (at least 3 feet above eaves or soffits), with the remainder supplied by eave intake.
| Ventilation Standard | Required Net Free Vent Area (NFVA) Ratio | Primary Calculation Criteria & Qualifications | Intake / Exhaust Target Balance |
|---|---|---|---|
| Standard Commercial Rule | 1 sq. ft. NFVA per 150 sq. ft. space | Default rule for commercial spaces, steep-slope assemblies, and humid southern climates | 50% Low Intake / 50% High Exhaust |
| Code Exception Standard | 1 sq. ft. NFVA per 300 sq. ft. space | Allowed in Climate Zones 6, 7, 8; or roofs with continuous vapor barriers and >40% peak vent height | 50% Low Intake / 50% High Exhaust |
Standard Calculation Formulas for Commercial Roof Ventilation Airflow
Determining precise ventilation hardware requirements begins with establishing total square footage. Consider a commercial pitched roof over a 3,000-square-foot attic floor area using the standard 1:150 ventilation ratio:
- Calculate Total NFVA Required: 3,000 sq. ft. ÷ 150 = 20 sq. ft. of total Net Free Vent Area.
- Convert to Square Inches: 20 sq. ft. × 144 sq. in./sq. ft. = 2,880 total square inches of NFVA.
- Balance Intake and Exhaust (50/50 Split):
- Intake Requirement: 2,880 ÷ 2 = 1,440 sq. in. of intake ventilation at the eaves or soffits.
- Exhaust Requirement: 2,880 ÷ 2 = 1,440 sq. in. of exhaust ventilation near the ridge.
When selecting hardware, review manufacturer NFVA ratings carefully. For instance, high-performance ridge vents like the Cor-A-Vent V-600 series supply 20 square inches of NFVA per linear foot. Dividing the 1,440 square inches of required exhaust by 20 square inches per linear foot demonstrates that this sample roof requires exactly 72 linear feet of continuous ridge vent. Check the high-airflow ridge vent technical specifications to verify system capacities.
Imbalance in this calculation causes system failure. If exhaust capability exceeds intake capacity, high-power exhaust vents draw air from conditioned interior living spaces or pull rain through exhaust seams, creating severe moisture leaks.
Types of Commercial Roof Ventilation Systems: Natural vs. Mechanical
Commercial structures utilize two main airflow designs: natural (passive) ventilation systems and mechanical (powered) ventilation systems. Passive systems leverage heat dynamics and ambient wind pressure to exhaust air without consuming electrical power. Mechanical systems deploy motorized fans, automated dampers, or heat exchangers to move high volumes of air reliably.
Passive Gravity and Natural Airflow Options
Passive systems rely on gravity convective flow—where warm air naturally rises—and exterior wind velocity to drive air across structural spaces. Key passive components include:
- Continuous Ridge Vents: Mounted along the high peak of pitched roofs, continuous ridge vents provide steady exhaust. Premium crush-proof low-profile systems deliver maximum airflow while integrating internal weather baffles to block wind-driven rain.
- Continuous Soffit Vents: Installed beneath eave overhangs, soffit louvers pull cool outdoor air into the low portion of the attic. They include pest guards to prevent rodent and insect intrusion.
- Spun Aluminum Gravity Vents: Aerodynamic units like the Model RSV – Roof Spun Vent – Moffitt utilize spun aluminum housings mounted on roof curbs. Their low profile minimizes wind load resistance while permitting high-capacity passive relief air exhaust.
- Industrial Wind Turbine Ventilators: Wind turbines use vertical vanes mounted on ball bearings to spin under natural wind currents, drawing interior thermal energy outward. Industrial units like wind-driven industrial turbine ventilators feature variable throat diameters ranging from 300mm up to 900mm to service heavy industrial plants without drawing power. Smaller polymer units like the Bradford SupaVent Wind Driven Roof Ventilator provide continuous maintenance-free airflow for coastal facilities exposed to severe saltwater environments.
Powered Mechanical Ventilation and Heat Recovery Systems
When structural architecture, flat roof design, or intense internal industrial heat generation limits natural convection, commercial properties rely on powered mechanical systems.
- Electric Power Roof Ventilators (PRVs): Driven by belt-drive or direct-drive electric motors, PRVs actively draw hot air, humidity, and airborne fumes out of structural bays. Integrating built-in thermostats automates fan activation based on interior temperature setpoints.
- Mechanical Ventilation with Heat Recovery (MVHR): Advanced commercial units, such as rooftop heat recovery ventilation units, incorporate motorized rotary heat exchanger wheels. These systems achieve up to 85 percent thermal efficiency by capturing heat from outgoing stale air to pre-warm incoming fresh air during winter cycles, drastically lowering facility energy demands.
- Building Management System (BMS) Integration: Modern mechanical fans interface with smart facility controllers using standard protocols like Modbus or BACnet, dynamically regulating Variable Air Volume (VAV) dampers according to real-time indoor air quality sensors.
Roofing Material Considerations: Flat vs. Pitched Roof Design
Roof construction geometry dictates which ventilation methods provide optimal weatherproofing and thermal performance. Pitched structures with asphalt shingles, standing seam metal, or concrete tile easily accommodate passive intake-to-ridge venting circuits. Flat low-slope roof decks require direct mechanical penetrations, specialized curb flashing elevations, and rigid waterproof sealing.
Central Alabama commercial roofs endure rigorous operational stress. Property managers in Alabaster, Pelham, Helena, and Calera face severe central Alabama hail and tornado season, heavy summer rain and wind, and Shelby County permit requirements to ensure structural wind-load resistance and leak-free performance. For professional assistance navigating local requirements, reach out to our expert team for Commercial Roofing Services.
Flat Membrane Systems vs. Pitched Metal and Tile Configurations
Venting flat commercial roof assemblies involves distinct challenges compared to sloped roofing. Flat roofs typically incorporate continuous single-ply waterproofing membranes—such as Thermoplastic Polyolefin (TPO), Ethylene Propylene Diene Monomer (EPDM), or Polyvinyl Chloride (PVC)—installed directly over rigid board insulation.
Because flat roofs lack high attic peaks and steep slopes to create natural stack-effect airflow, specialized venting techniques are necessary:
- TPO and PVC Penetrations: Static breather vents or powered fans mounted on low-slope membrane decks require elevated roof curbs extended at least 8 to 12 inches above the membrane surface. Waterproofing membranes are heat-welded directly to boot flashings around each penetration, preventing water intrusion during heavy summer rainstorms.
- EPDM Relief Stack Seals: EPDM rubber membranes utilize pre-molded EPDM pipe boots and specialized liquid adhesive flashings around breather pipes to accommodate structural deck movement without splitting.
- Standing Seam Metal Roofs: Pitched metal roofs utilize modified ridge caps fitted with profile-matching continuous ventilation strips. Solid metal caps allow hot air exhaust while preventing weather infiltration across standing ribs.
- Tile Roofing Assemblies: Clay and concrete barrel tile roofs use elevated two-piece ridge vent assemblies installed along hip and ridge beams, allowing air to escape under tiles without compromising storm-driven rain protection.
To understand low-slope structural design in more detail, review our guide explaining Why Commercial Buildings Have Flat Roofs.
Inspection, Testing, and System Maintenance Best Practices
Maintaining proper commercial roof ventilation requires routine inspection, diagnostic air testing, and aggressive preventative clearance. Neglecting vent components leads to clogged intake grilles, rusted fan housings, water leaks, and structural rot.
Executing an effective commercial ventilation maintenance routine includes key operational steps:
- Conduct Non-Destructive Smoke Airflow Testing: Diagnostic technicians introduce non-toxic smoke into lower eave intake ducts or sub-roof bays while monitoring exhaust vents on the roof. Smoke testing reveals airflow velocities, identifies dead zones lacking air circulation, and pinpoints structural leaks near parapet walls.
- Execute Bi-Annual Flashing and Seal Checks: Scheduled every spring and autumn, commercial inspectors must check rubber flashing boots, caulking joints, and heat-welded membrane seams around all vent penetrations. Expanding and contracting metal curbs can tear membrane seals, leading to roof leaks during severe weather events.
- Inspect Pest Guards and Debris Screens: Tree leaves, windblown dirt, bird nests, and wasp hives frequently block soffit intake louvers and turbine vent openings. Clearing intake screens restores balanced 50/50 airflow ratios.
- Service Motorized Drives and Dampers: Mechanical power ventilators demand semi-annual motor lubrication, belt tension adjustments, and electrical disconnect switch checks. Thermostats and motorized backdraft dampers must be tested to ensure complete closure during winter heating months.
- Verify Local Code and Building Compliance: Ensure all rooftop hardware modifications adhere to Shelby County permit requirements and local wind-uplift codes.
If your commercial facility is located near Calera, discover how localized climate conditions affect your facility’s roof deck by consulting experienced roofing contractors in Calera, AL. Detailed inspection routines are outlined in our dedicated guide to comprehensive Commercial Roof Maintenance.
Frequently Asked Questions about Commercial Airflow Systems
How do I know if my building ventilation is failing?
Signs of failing commercial roof ventilation include excessive interior humidity, visible mold growth along upper ceiling tiles, musty smells, soaring summer cooling expenses, and premature roof membrane blistering or shingle curling. During winter cycles, uneven roof deck temperatures cause snow melt to freeze along eave edges, creating hazardous ice dams.
If you suspect structural roof moisture damage, avoid attempting risky self-inspections on commercial roofs. Contact a licensed commercial roofing contractor to conduct professional moisture testing, thermal imaging, and roof integrity evaluations.
What is the difference between active and passive ventilation?
Passive ventilation operates entirely on natural physical forces—such as thermal convection (warm air rising) and ambient wind pressure—without drawing electrical energy. System examples include ridge vents, soffit louvers, static roof hoods, and wind-driven turbine ventilators.
Active ventilation uses motorized electrical fans, power ventilators, or automated heat recovery MVHR units to force air movement through building spaces. Active systems are necessary when handling dense industrial heat, chemical fumes, or massive low-slope flat roofs lacking natural convective stack pressure.
Do flat roofs require specialized exhaust systems?
Flat roofs require specialized exhaust configurations because they lack steep pitch slopes and natural high-point attic cavities. Static relief vents and power ventilators on flat roofs must be installed on elevated roof curbs raised well above expected standing water heights. Single-ply TPO, EPDM, or PVC waterproofing membranes must be custom-welded or sealed around every curb penetration to prevent water intrusion.
Take Control of Your Commercial Building’s Health
Properly balanced commercial roof ventilation protects structural decking, preserves internal air quality, lowers energy costs, and extends roof life. From passive gravity louvers and industrial wind turbines to advanced mechanical heat recovery systems, designing the right airflow solution requires expert calculation, precise material selection, and high-quality installation.
Central Alabama commercial properties encounter heavy weather burdens each year, including intense summer heat, sudden tropical downpours, severe storm seasons, and strict local building permitting requirements. Investing in a professional ventilation assessment today prevents structural deck rot, mold contamination, and premature roof replacement costs down the road.
Commercial roof replacements represent significant investments. Overall replacement costs vary depending on structural square footage, chosen membrane or metal materials, labor complexity, tear-off requirements, and Shelby County permit fees. For commercial building owners in Alabama, high-quality commercial roof installations generally range between $5.00 and $12.00 per square foot, depending on insulation thickness and structural deck repairs.
Contact our expert commercial roofing team today to evaluate your building’s airflow design, inspect roof flashing seals, and resolve structural moisture concerns. We offer free estimates to help you plan your facility budget effectively. Call (205) 661-8190 to schedule a free inspection with Prime Roofing & Restoration today to protect your commercial investment for decades to come.
